Comprehensive Guide to Stainless Steel Pipe Coupling

This guide answers all the questions you have about stainless steel pipe couplings. Look no further if you have been looking for information about stainless steel merchant couplings.

You will find the most direct, yet detailed answers to basic questions, you often ask about stainless steel full merchant couplings and half merchant couplings.

Without further ado, here we go:

1. What Are Stainless Steel Pipe Couplings?

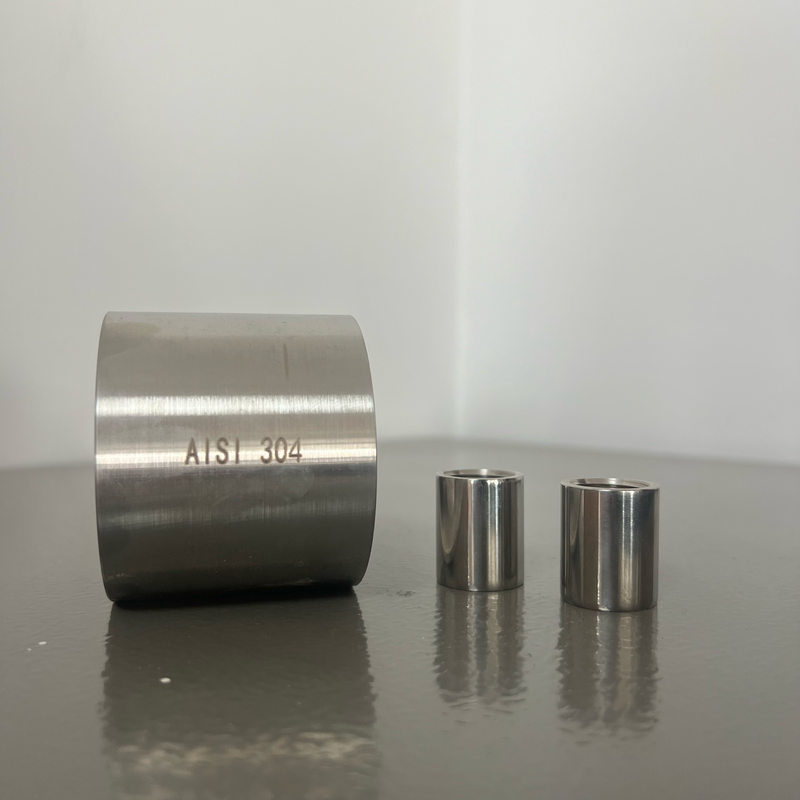

Stainless steel pipe couplings are forged from high-quality 304/304L/316/316L stainless steel pipes. Stainless steel has stronger corrosion resistance than carbon steel.

Stainless steel pipe couplings are used as pipeline extensions for conveying fluids and are widely used in the connection of industrial conveying pipelines such as petroleum, chemical, medical, food, light industry, and mechanical instruments.

2. Types of Stainless Steel Pipe Couplings

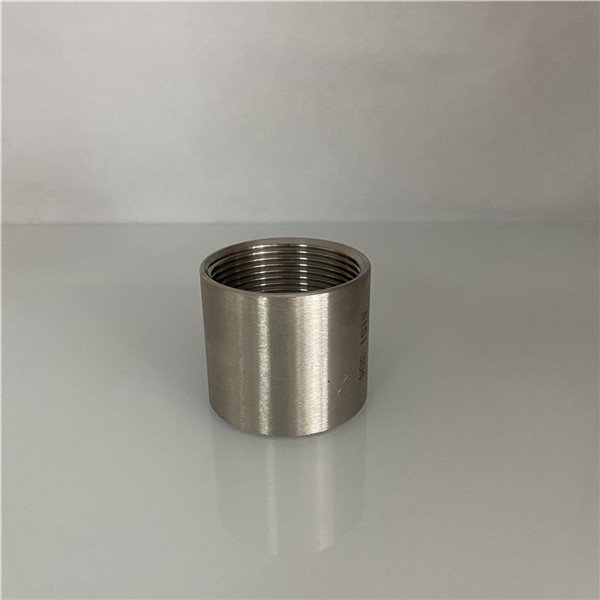

• Full Merchant Couplings:

Used primarily for connecting pipes to create lengthy pipeline systems.

They help to create a straight connection with higher pressure ratings.

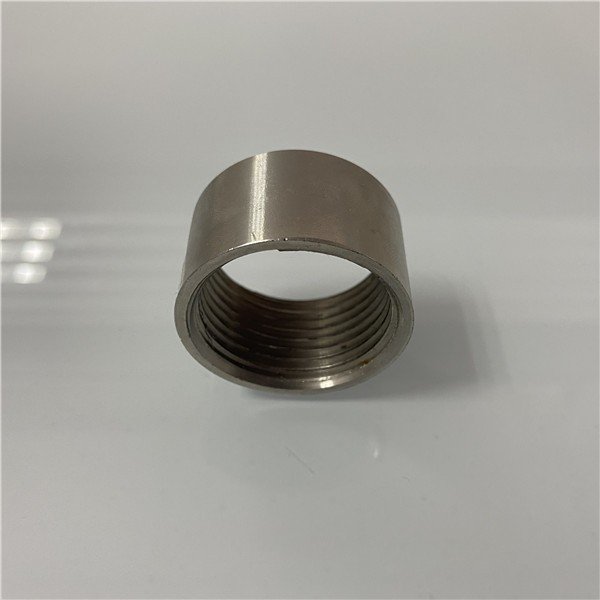

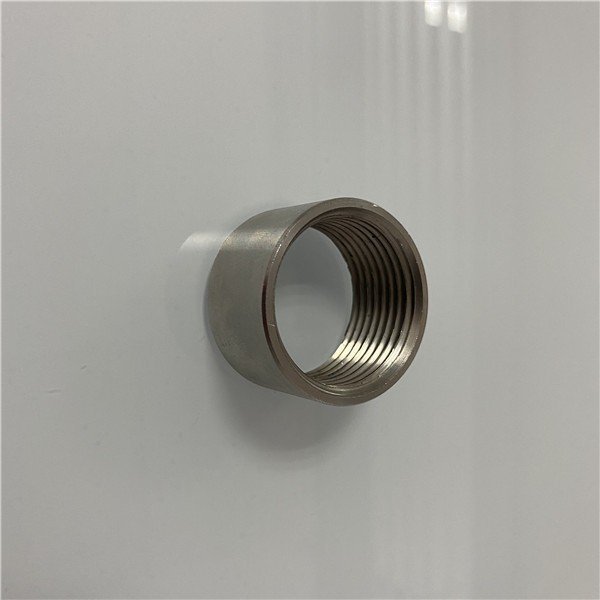

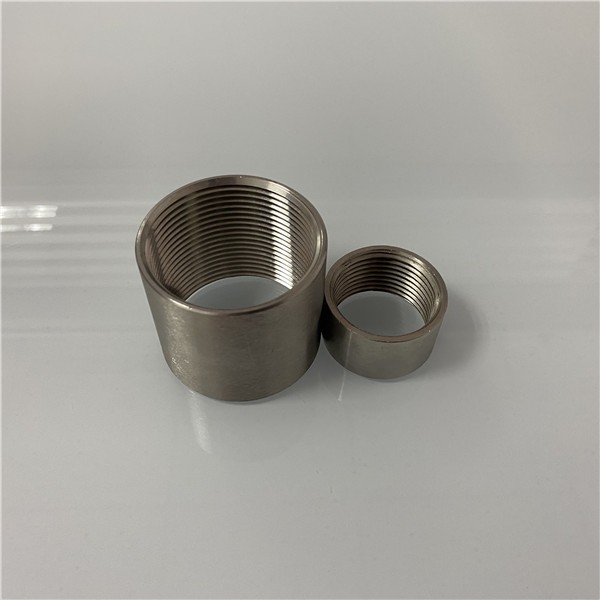

• Half Merchant Couplings:

Suitable for applications where a complete coupling is not necessary.

Designed for reinforcing connections at pipe ends.

• Reducing Couplings:

Allows for connecting pipes of different diameters.

Used in systems where space is limited or flow control is critical.

• Union Couplings:

These are a type of coupling designed for easy disassembly.

They are ideal for maintenance purposes and allow for quick changes in direction for piping systems.

3. What Are Stainless Steel Merchant Couplings?

Merchant couplings are mainly used for piping problems involving low pressure. SANVO merchant couplings are designed to protect the threaded end of a threaded pipe, a pipe with screw-headed threads for easy assembly, that run through water, gas, or oil lines.

Made of stainless steel pipes/tubings, stainless steel merchant couplings are used often in low-pressure piping situations, like with water, oil, air, or gas lines. They are designed to protect the thread on the threaded end of the pipe.

4. Stainless Steel Merchant Coupling Thread Standards

Merchant couplings are manufactured per ASTM A865 and are intended for use on steel pipe joints by ANSI B1.20.1. Sizes 1⁄8″ NPS through 2″ NPS are straight-tapped. Sizes 2 1⁄2″ NPS and larger are always taper-tapped.

The difference between straight thread and tapered thread

• First, it comes down to cost. Tapered threads cost more to manufacture while straight threads cost less to produce.

• Second, tapered threads seal better. They seal better because the threads get tighter the further down the coupling, while straight threads stay the same width throughout.

All merchant couplings are chamfered before they are threaded. This means that before the threading is done, a chamfer is created. It can be tricky to tell where the threads start on the chamfer, but it helps thread the pipe into the coupling.

5. Additional Benefits of Stainless Steel Pipe Couplings

• Durability:

Stainless steel is known for its longevity and does not need a reduced replacement frequently.

• Temperature Resistance:

Stainless steel couplings can withstand high temperatures environments and still work.

• Hygienic Properties:

The non-porous surface of stainless steel minimizes contamination, making it widely favored in the food and medical industry.

• Pro-environmental:

Stainless steel is an environmentally friendly option. When the couplings are removed or replaced, they can be repurposed or recycled rather than turned into garbage.

6. Maintenance Tips

• Inspection: Regularly inspect couplings for signs of corrosion or wear.

• Cleaning: Maintain cleanliness, especially in food and pharmaceutical applications, to prevent contamination.

• Re-tightening threaded connections can ensure they remain secure over time.

7. Where To Buy/Purchase Stainless Steel Merchant Couplings?

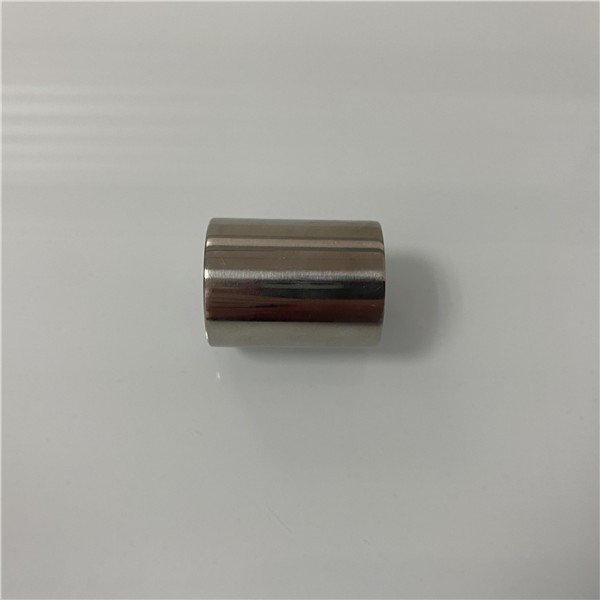

SANVO is a good stainless and carbon steel pipe coupling factory, manufacturer, supplier, wholesaler, exporter, and company in China, and supplies standard and extra heavy stainless steel full merchant couplings, half merchant coupling, and API line pipe couplings, etc.

Our stainless steel merchant couplings can be customized according to drawings, samples, or special requirements of customers, and send samples for free. So, you can choose Hebei Sanvo Pipes And Fittings Co., Ltd. to buy/purchase stainless steel merchant couplings.
