Description
| Size | 1/8″-8″; DN6-DN150; 1/8″-6″ |
|---|---|
| Material | Carbon Steel |
| Connection | Thread |
| Threads | Male Thread |
| Technics | Forged |
| Specification | Welded or Seamless; ASTM A733/DIN2982/BS EN10241 |
| Application | Pipe connections for natural gas, oil, water, fire fighting, landmines, etc. |
| Trademark | SANVO |
| Origin | China |
| Package | Cartons & Pallet / Cartons & Plywood Cases |

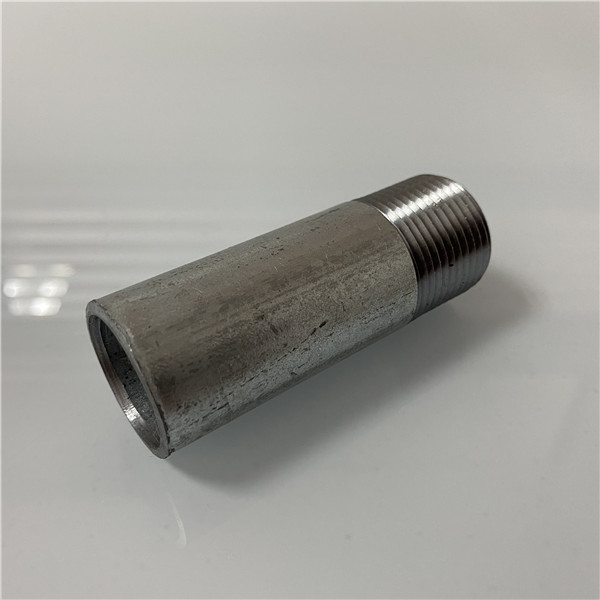

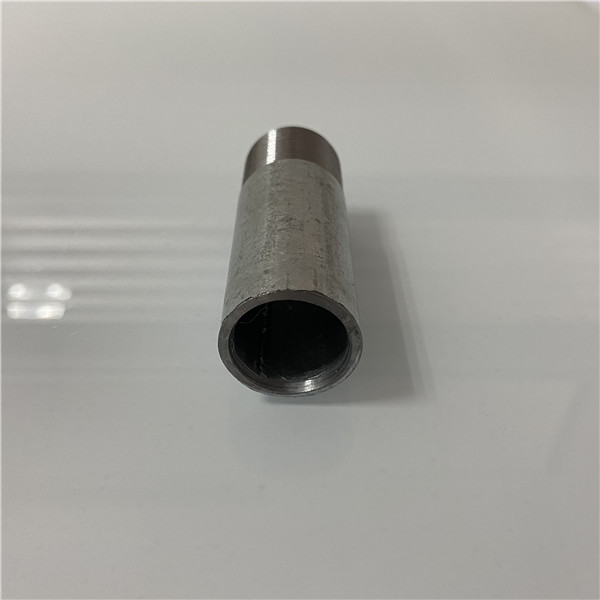

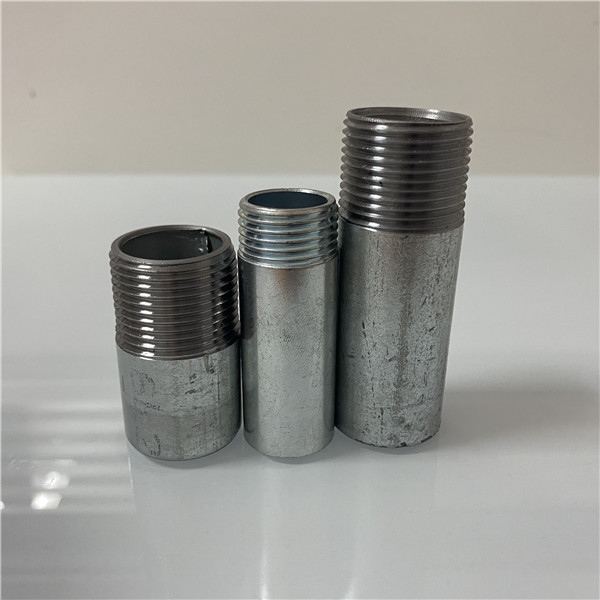

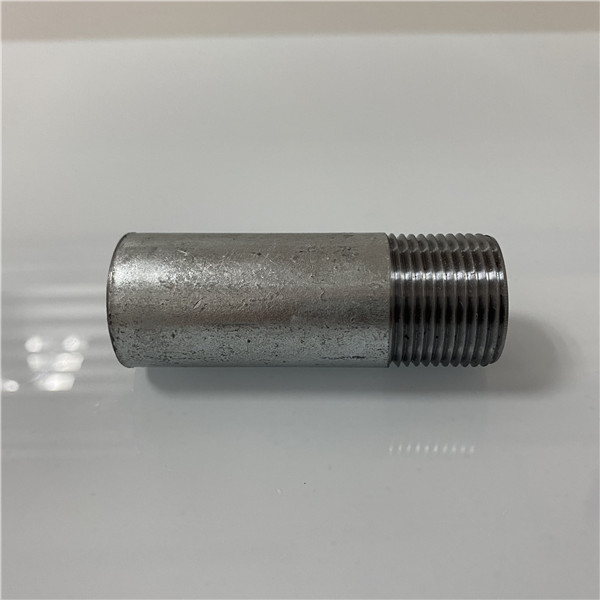

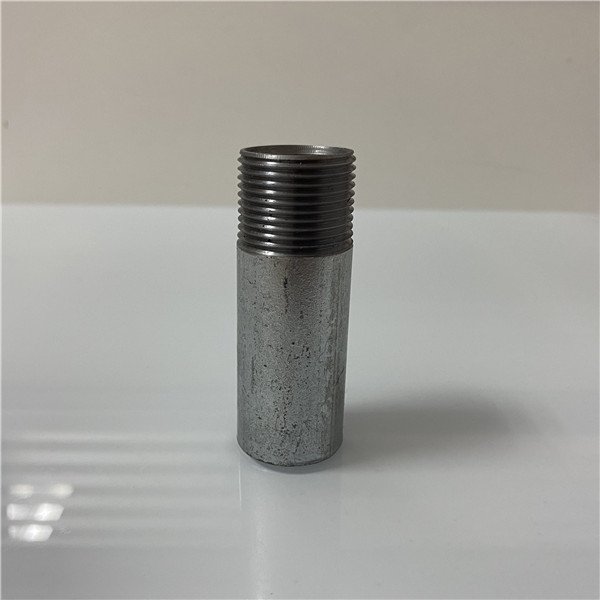

Galvanized TOE Pipe Nipple Description
A TOE pipe nipple (welding nipple) is a nipple of thread on one end and has a male thread on one side and a weld end on the other side, which is used as another method of connecting tube fittings. These welding nipples are suitable for use under extreme conditions of vibration, pressure surges, and temperature changes.
Used to obtain a threaded connection on the end of standard scheduled pipe sizes rather than O.D. tube sizes, so that NPT pipe threaded fittings may be attached.
The advantage of welding nipples is that once the unthreaded end is connected, you can connect pipes or other fittings to the threaded end more easily.
Attention
1. 1 1/2 inch NPT x 10-inch length TOE pipe nipple, threaded one end, welded schedule 40 galvanized pipe (carbon steel);
2. These galvanized toe pipe nipples are held in place with a standard compression coupling. They are available in carbon steel and stainless steel. Specify length when ordering;
3. Galvanizing can increase the corrosion resistance of the steel pipe nipple and prolong the service life;
4. Galvanized TOE pipe nipples can be customized according to drawings, samples, or customer requirements;
5. For piping systems that require to be connected to welded pipes or fittings, a ‘welding nipple’ is used. The welding nipple has a threaded connection on one end and a normal cut pipe at the other end. The unthreaded end of the pipe provides more surface area for the use of welding materials to make a stronger connection. One main benefit of welding nipples is that once the unthreaded end is connected, connecting pipes or other fittings to the threaded end becomes much easier.
Features of Welded Pipe Fittings
The weld fittings are in flexible connection mode, and the threaded and Plain End can be welded and connected conveniently to other pipes or fittings, simplifying the design and installation of the plumbing system. The galvanized nipples are suitable for applications that require mixed connections and coordinate with corrosion-resistant surfaces to ensure durability and extend life even in a challenging environment. The fittings use a sophisticated manufacturing process that can offer a more stable connection to applications. Other materials, such as stainless steel nipples, offer different strengths compared to galvanized steel nipples, how to choose based on practical application.
