Description
| Size | 1/8″-12″ |
|---|---|
| Material | API 5L Section 8 |
| Connection | Female Thread |
| Specification | Galvanized, black, and stainless steel API line pipe coupling |
| Technics | Forged |
| Application | Pipe connections for natural gas, oil, water, fire fighting, landmines, etc. |
| Origin | China |
| Flexible or Rigid | Rigid |
| Package | Cartons & Pallet / Cartons & Plywood Cases |
| Trademark | SANVO |

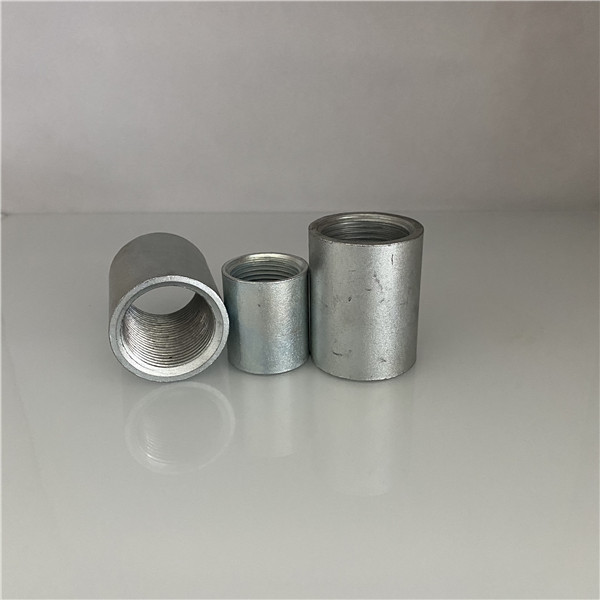

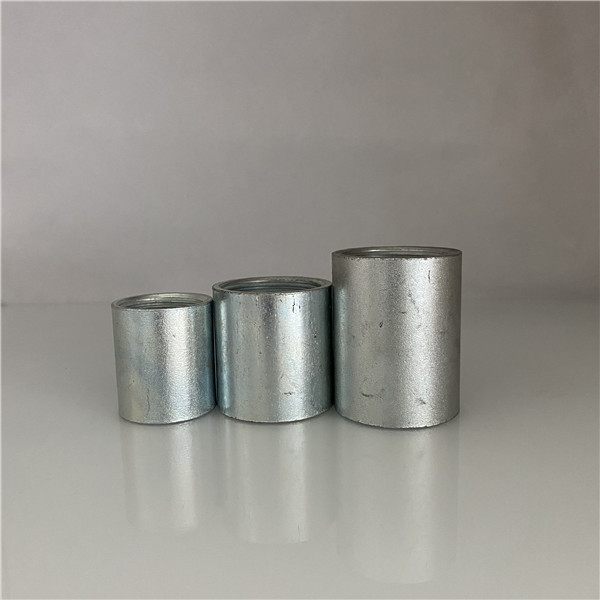

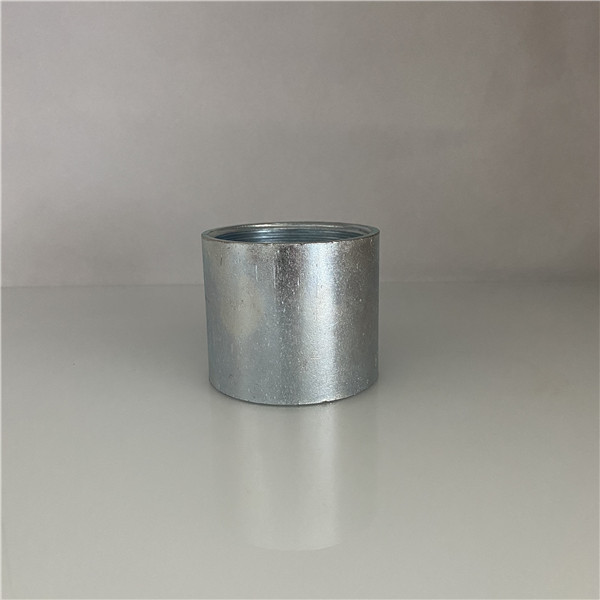

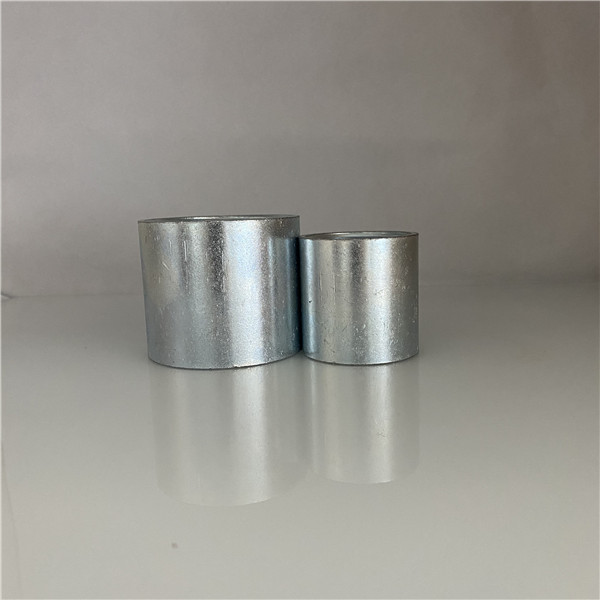

API Line Galvanized Pipe Couplings Features:
- API Line Couplings stocked 1/8″ – 12″ diameters
- API Couplings are rated at 300 PSI
- API Couplings have tapered threads per API 5B
- Pipe: ASTM A865
- Thread: ANSI/ASME B.1.20.1
These couplings are manufactured in accordance with American Petroleum Institute Specification 5L. All sizes are taper tapped 3/4″ per foot on the diameter. Line pipe couplings in sizes 1/8″-1 1/2″ are dipped in rust preventative.
And couplings in sizes 2″ and larger are phosphated.
Galvanized couplings are electroplated zinc or hot dipped zinc, and galvanizing can increase the corrosion resistance of the steel pipe coupling and prolong the service life.
