Description
| Size | 1/8 inch-8 inch |
|---|---|
| Material | 304 Stainless Steel, 314L Stainless Steel, 316 Stainless Steel, 316L Stainless Steel |
| Connection | Male Thread Connect |
| Threads | Male Thread |
| Technics | Forged |
| Specification | Seamless; ASTM A733/DIN2982/BS EN10241 |
| Application | Pipe nipples are used for natural gas, oil, water, fire fighting, landmines, and other piping system connections. |
| Trademark | SANVO |
| Origin | China |
| Package | Cartons & Pallet / Cartons & Plywood Cases |
The ASTM A733 standard applies to carbon steel and stainless steel nipples of connections used for pressure pipes. It stipulates material demand, dimensional tolerance, mechanical properties, and test demand, and it is especially suitable for environments that need high strength and anti-corrosion performance.
1. Product Name

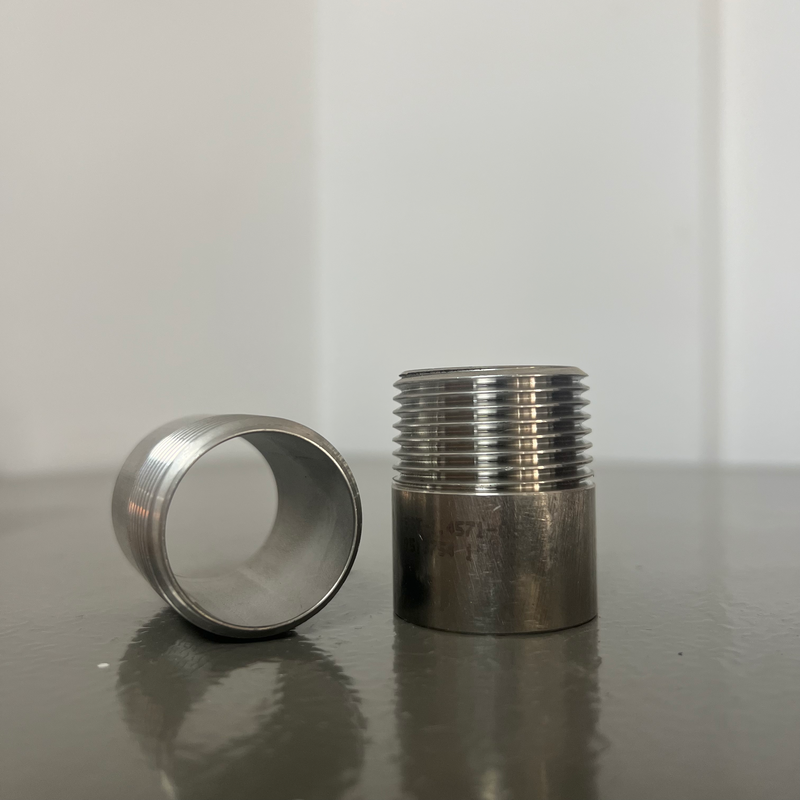

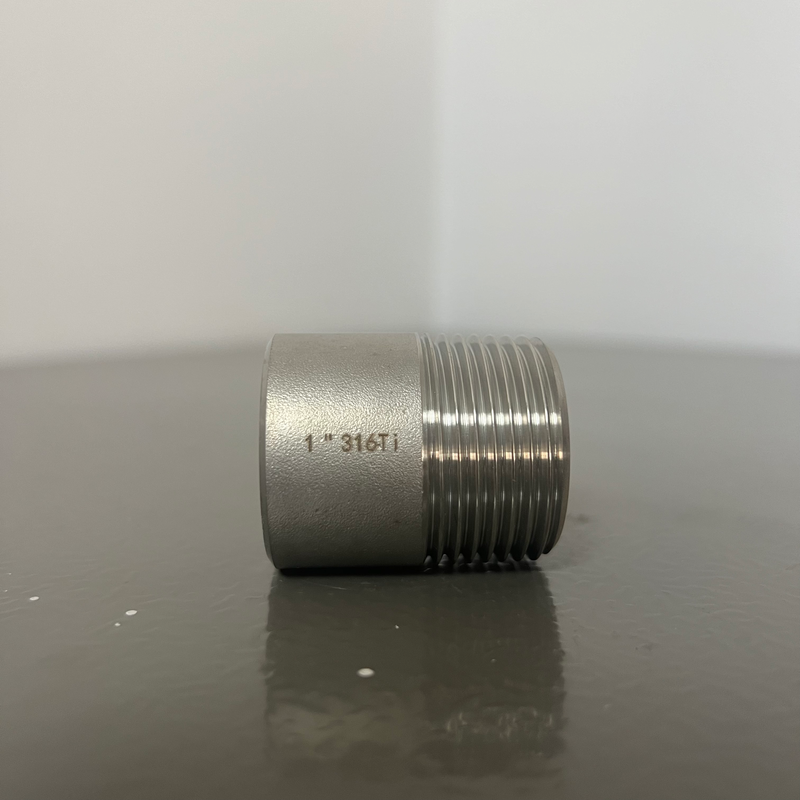

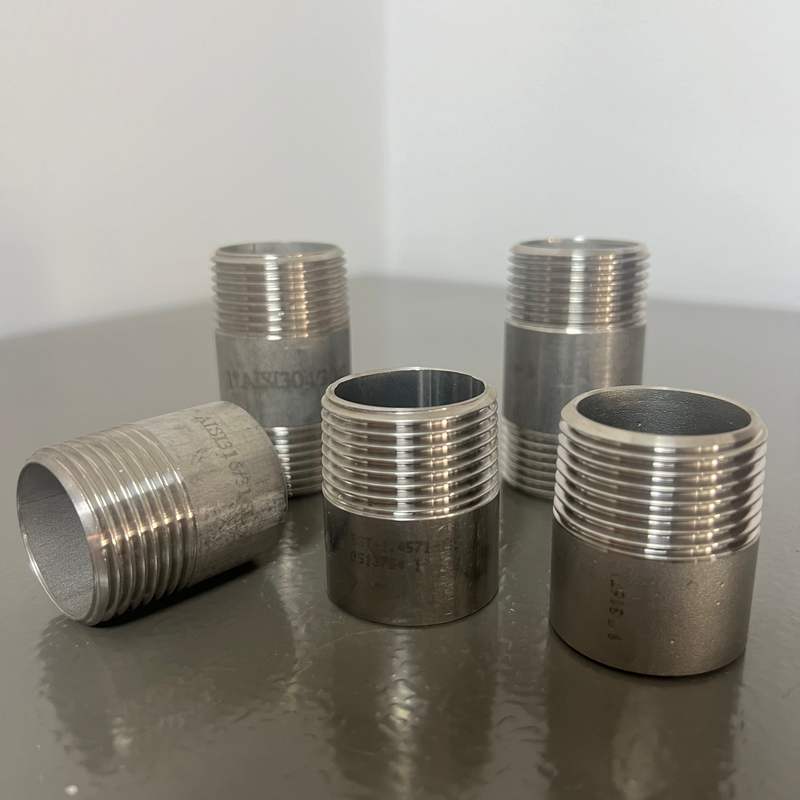

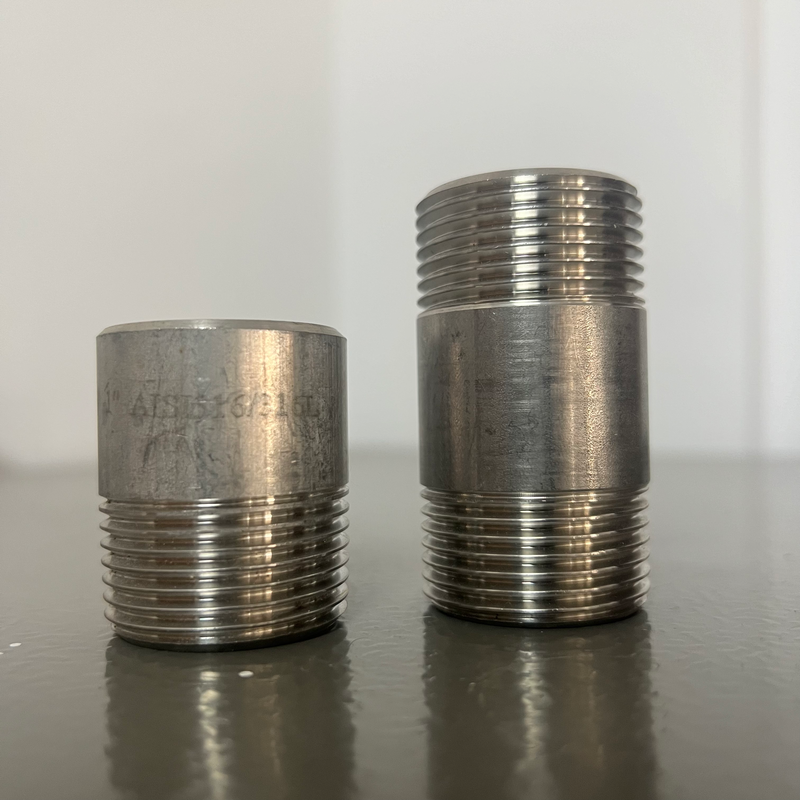

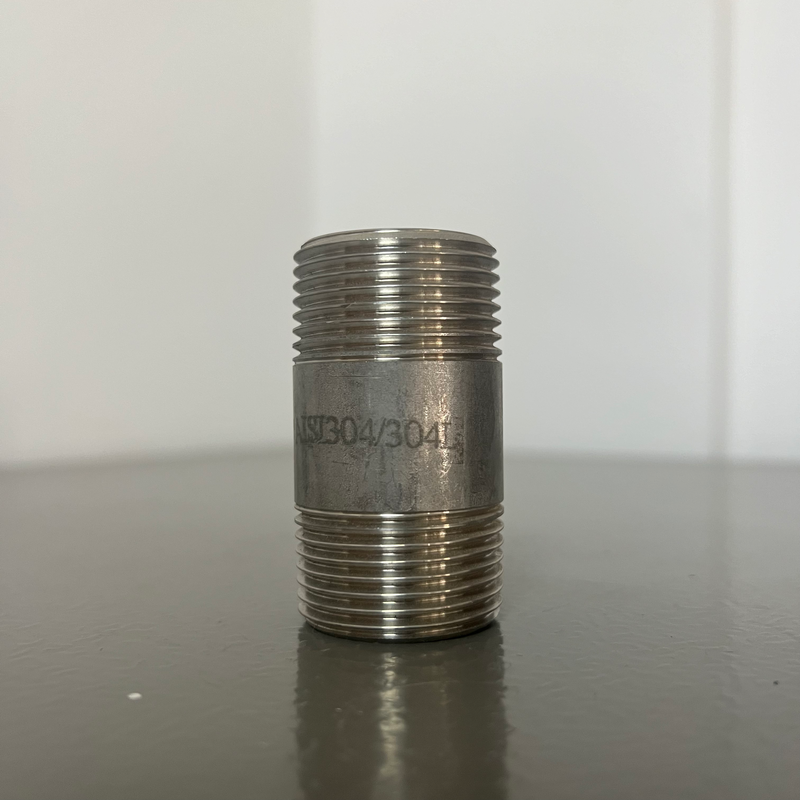

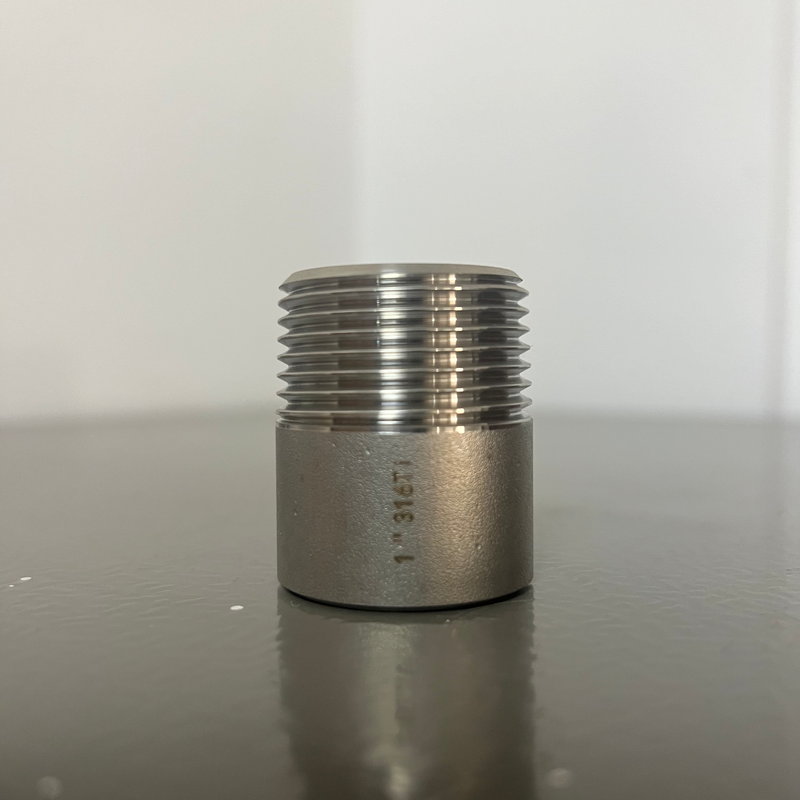

1-inch × Schedule 40 seamless nipple
2. Manufacturing Standard
ASTM A733
3. Key Parameter
Nominal Pipe Size (NPS): 1-inch nipple
Wall Thickness: Schedule 40 and conforms to ME B36.10/B36.19 standard.
Length: 1/2 to 8 inches, and customized size.
Thread Type: male thread on both ends or one male thread and one unthreaded end.
4. Material
304/304L or 316/316L stainless steel.
304/304L stainless steel nipple has excellent corrosion resistance performance, suitable for most neutral or weakly acidic environments.
The 316/316L stainless steel nipple has molybdenum to enhance its anti-corrosion properties, making it suitable for harsh chemical or marine environments.
5. Craft Features
Seamless pipe nipples use seamless pipe as original materials, precision cutting, and mechanical processing.
Seamless steel pipe ensures uniform mechanical properties and higher pressure resistance.
Precision-machined threads, conforming to ANSI/ME B1.20.1 (NPT) or ISO 7/1 (BSPT) standards, ensure a tight connection with no risk of leakage.
Smooth surface or passivation treatment that enhances corrosion resistance and durability.
If you are interested in samples or quotes, let us know! Share your project details, and we’ll assist you and recommend the most suitable product.
